External Motions Planner

This guide walks you through setting up an external motions planner in the CPM Lab. It assumes you installed the CPM Lab using Install from Debian Packages and want to use an integrated motion planner.

Note

Prerequisites: have ROS2 sourced (see your distribution), the CPM Lab packages installed, and the RViz configuration.

1. Launch RViz

Download the CPM-Lab RViz configuration and launch RViz with your ROS2 setup.

source /opt/ros/<ros2-distro>/setup.bash
export ROS_DOMAIN_ID=21
rviz2 -d <path-to-rviz-config>

2. Configure the Control Center

When you start the Control Center you may be presented with a few configuration screens.

Note

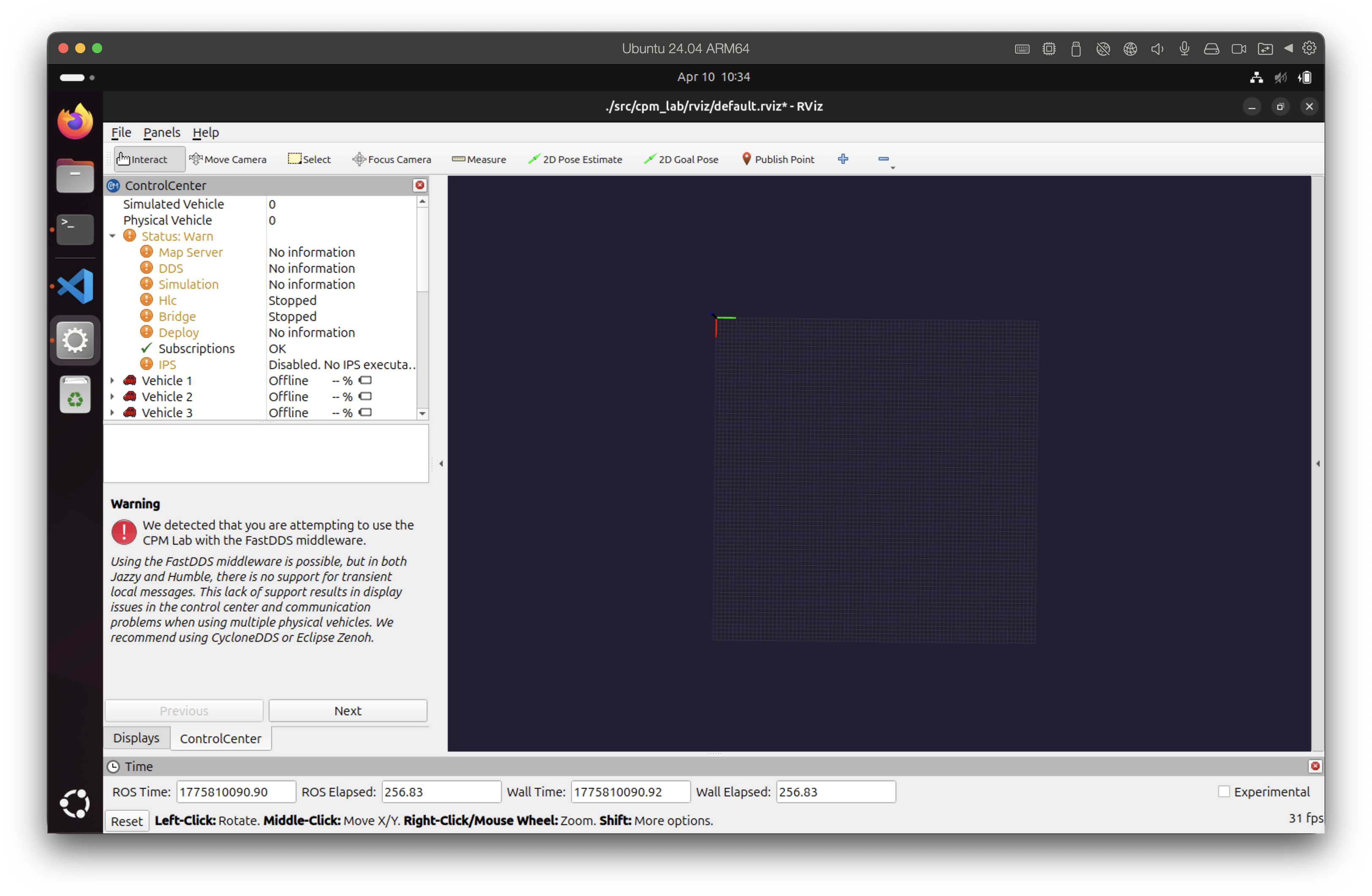

The warning about FastDDS is expected if you have not switched to an alternative RMW implementation. You can choose to ignore the warning and continue with FastDDS, but we recommend switching to CycloneDDS or Zenoh for a more stable experience. If you switch to an alternative RMW implementation you will not see this warning.

Note

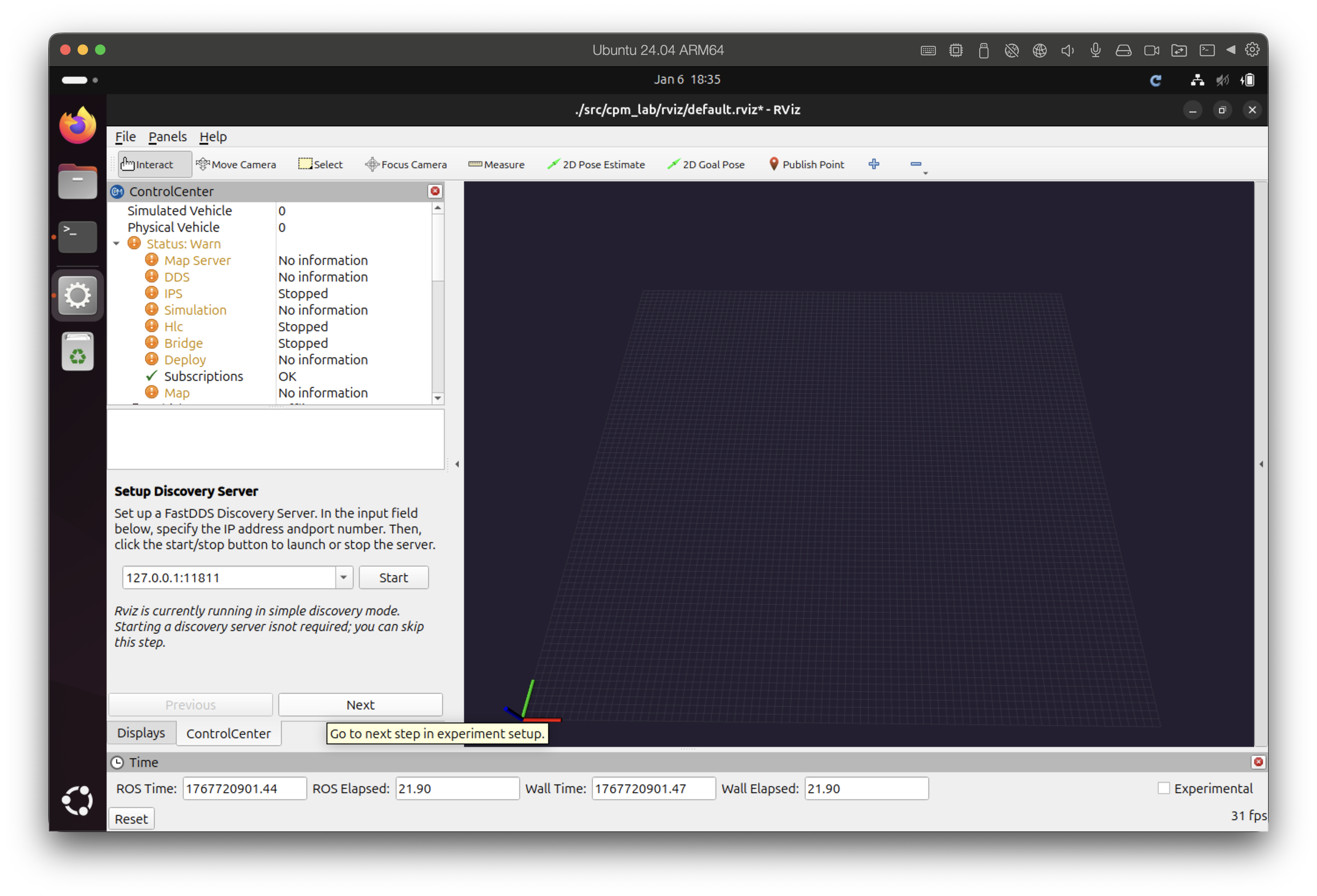

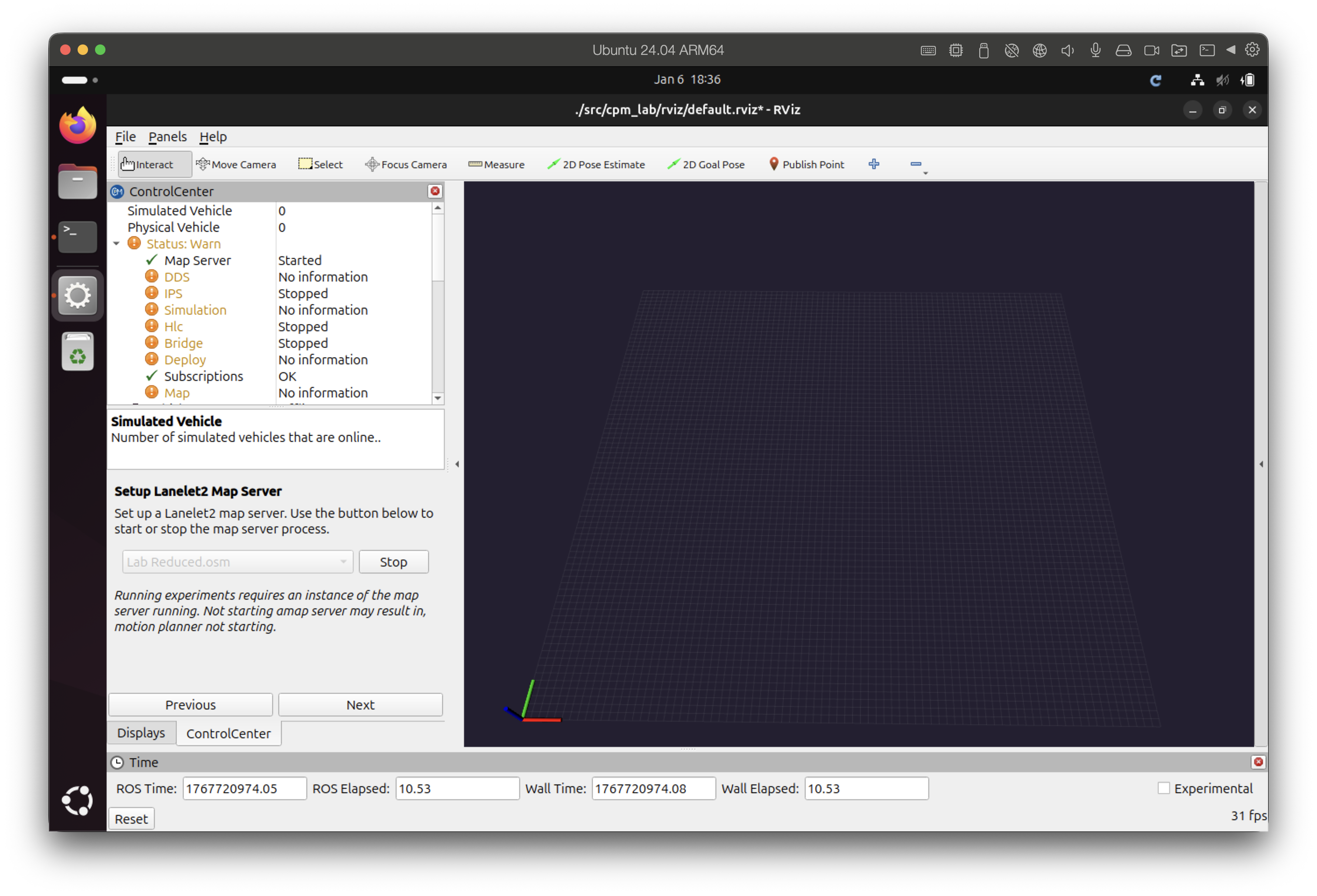

The FastDDS Discovery Server is an advanced discovery mode and is not required for a basic simulation. You can skip it for typical simulation runs. We again recommend switching to an alternative RMW implementation instead of using FastDDS for a more stable experience. If you switch to an alternative RMW implementation you will not see this screen.

Note

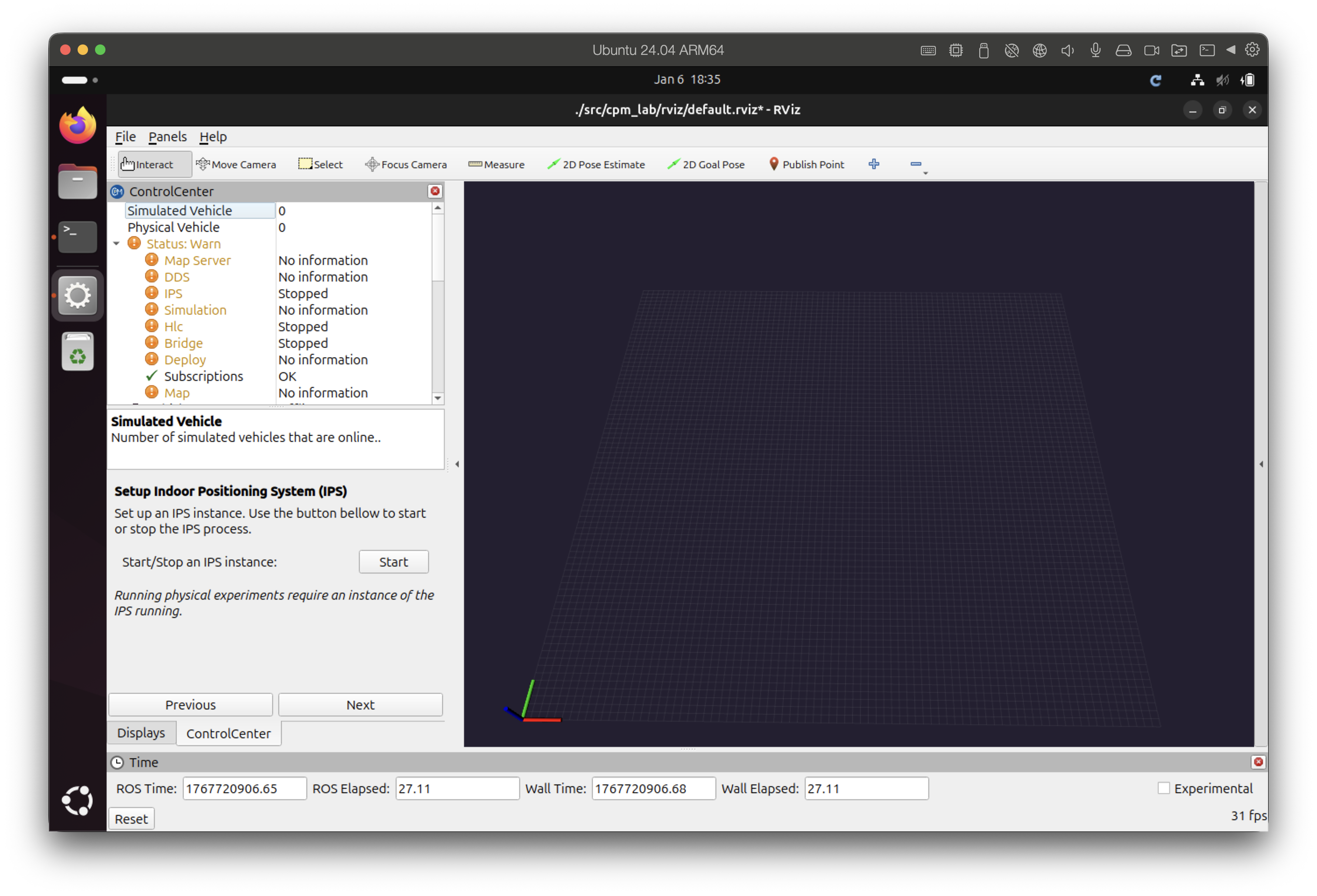

If you installed the indoor positioning package the Control Center may prompt to start it. For simulations this is optional and can be skipped.

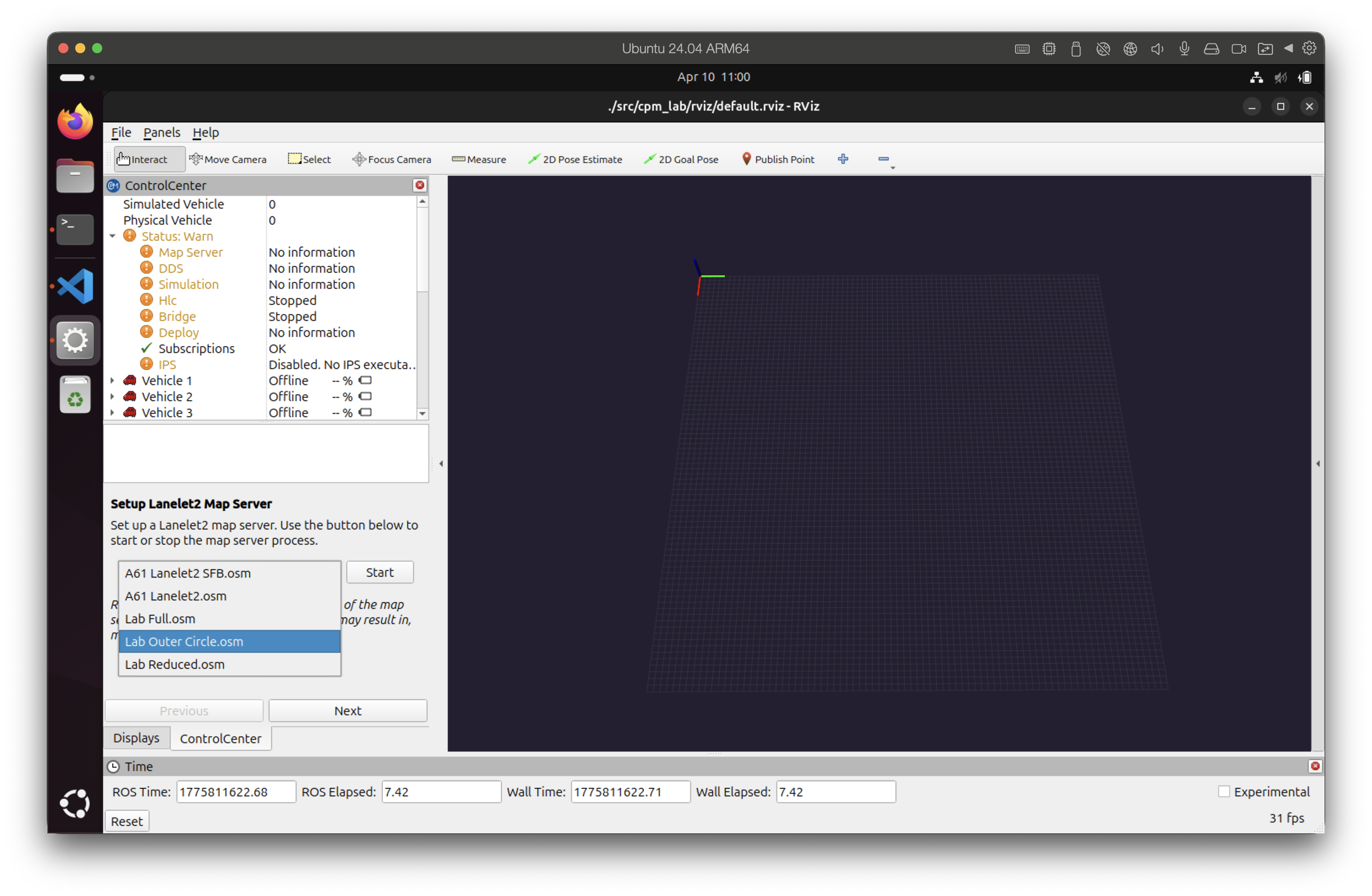

Next, select the map to use for the simulation (maps starting with “Lab” are provided). In this guide we chose “Lab Outer Circle”. Click Start to launch the map server.

Warning

If you run FastDDS as the RMW implementation the map might not appear in RViz due to known QoS incompatibilities. The simulation and planners still work; the missing map is a display issue.

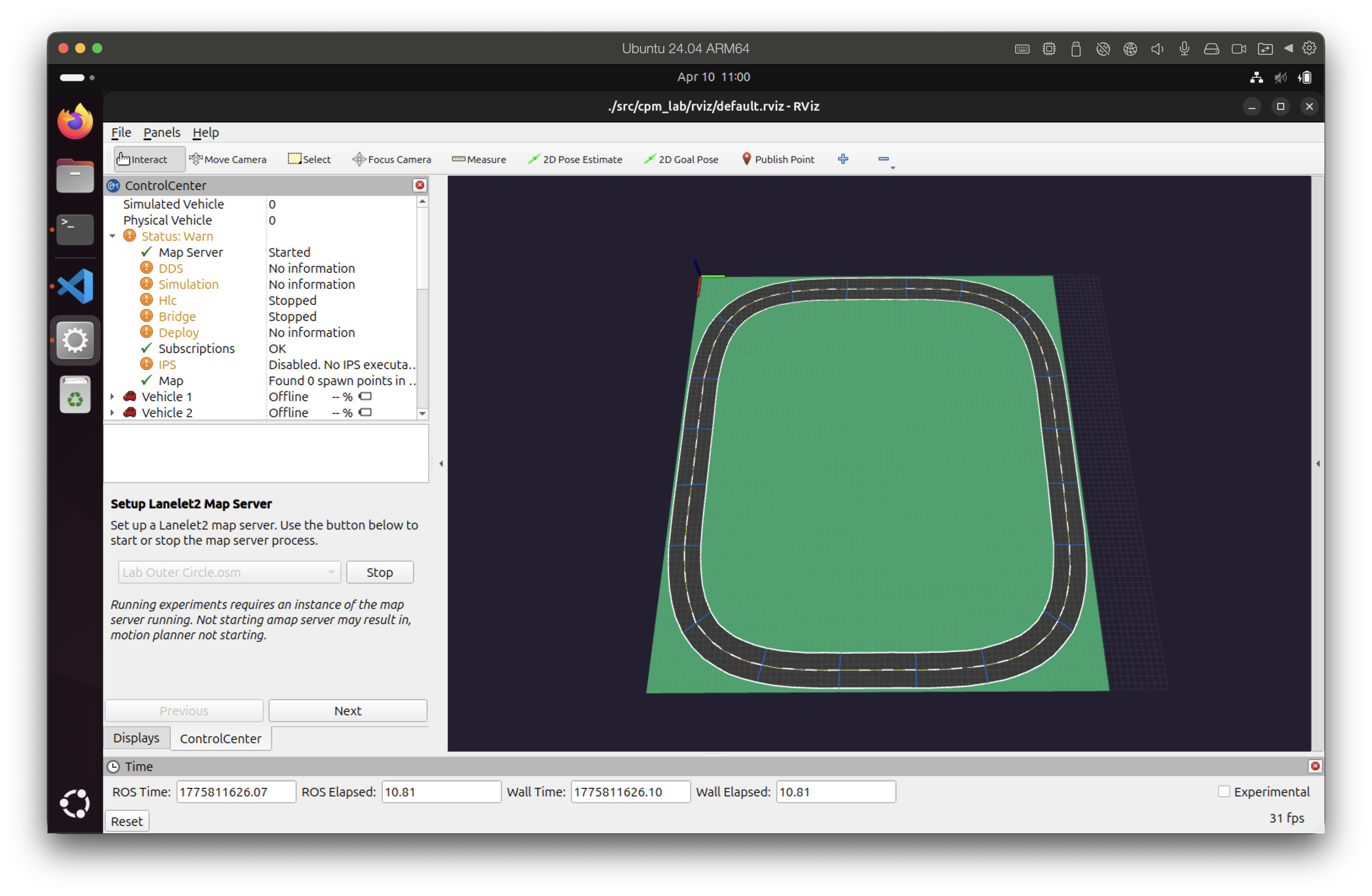

If you are using CycloneDDS or Zenoh you should see the map in RViz immediately.

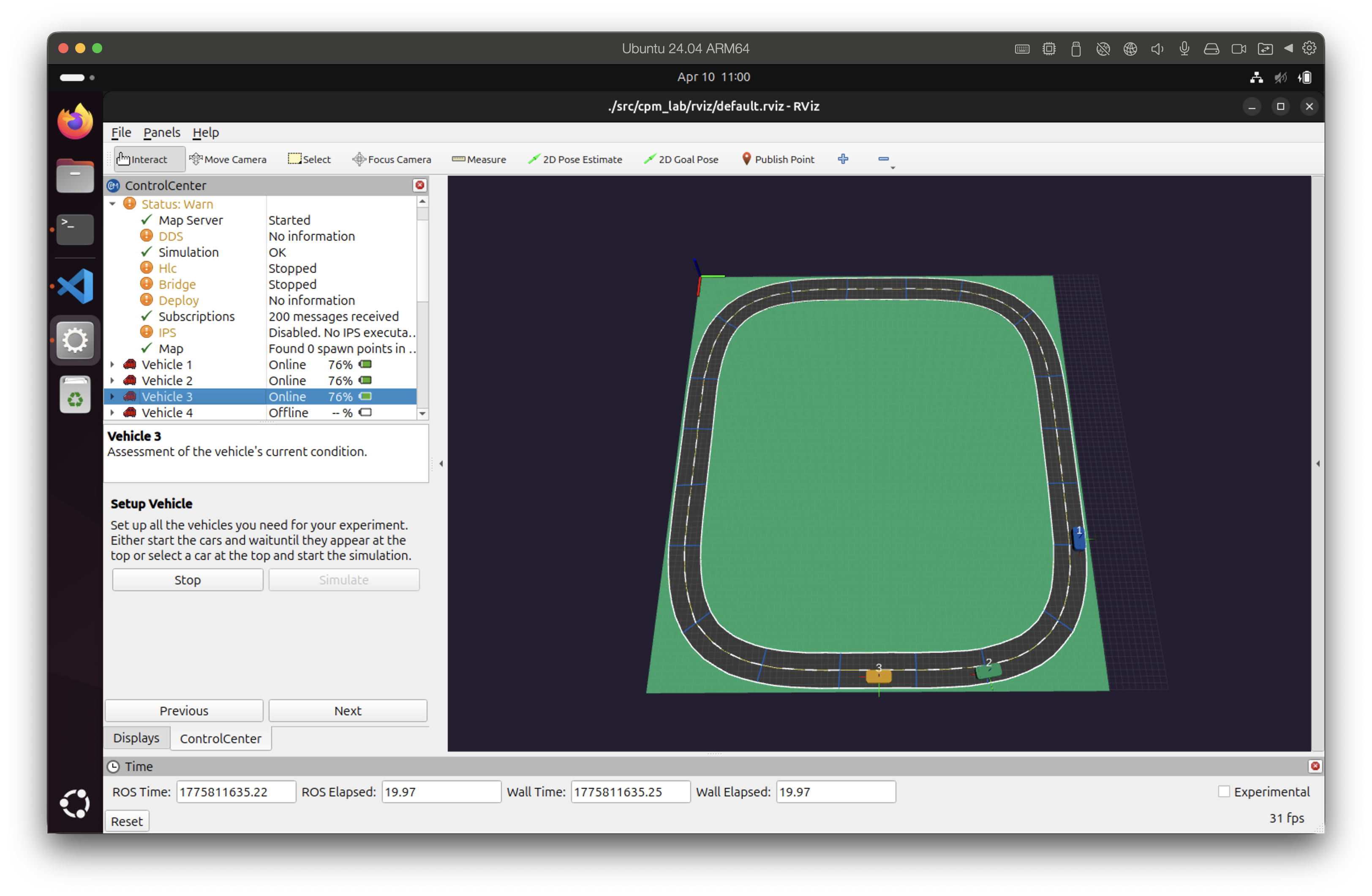

After the map server is running, start one or more vehicle simulations. Select the vehicle(s) in the Control Center selection screen and click Start.

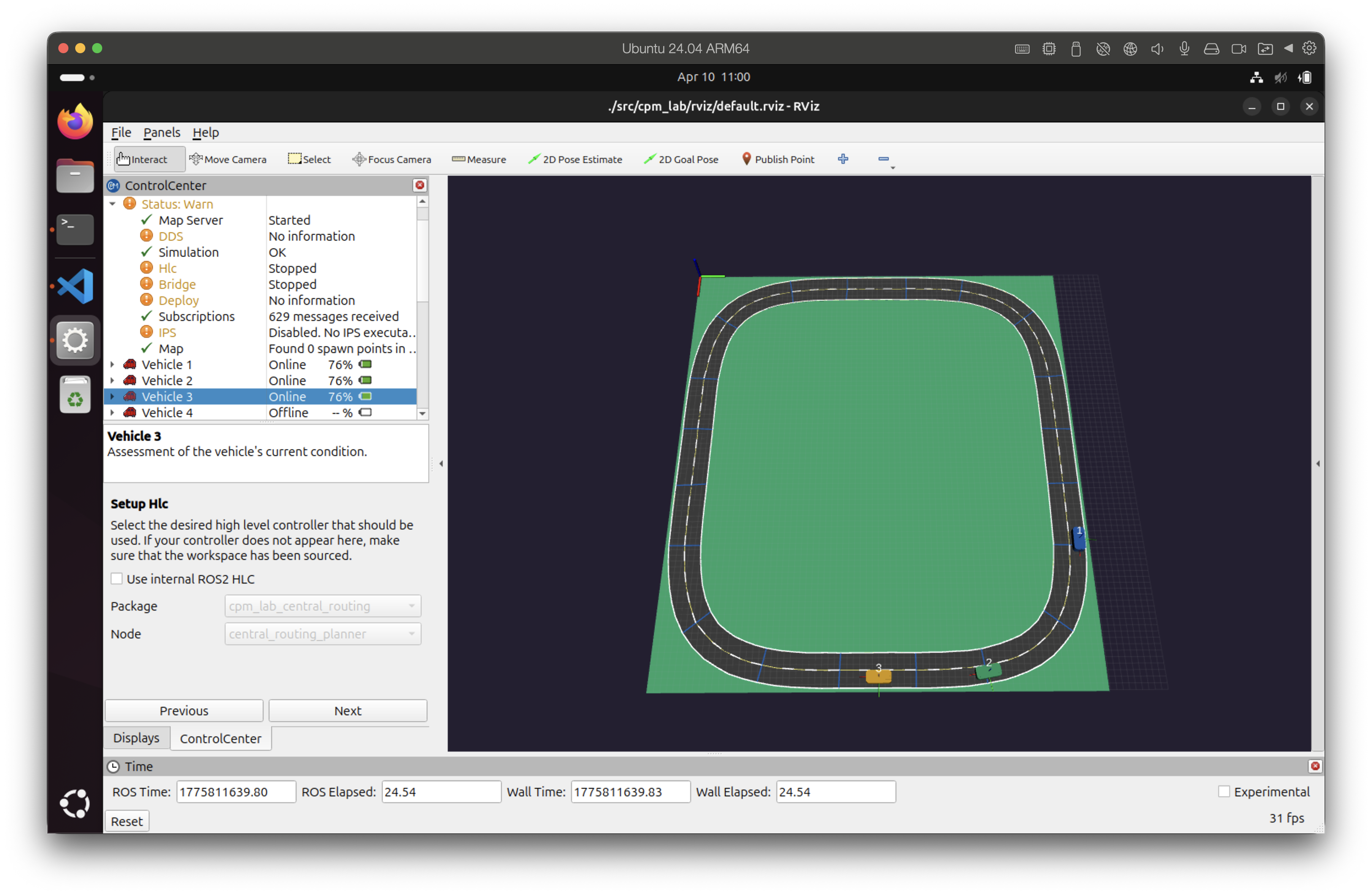

Start a motion planner next. Uncheck “Use internal ROS2 HLC” and simply click “Next” to proceed to the experiment setup screen.

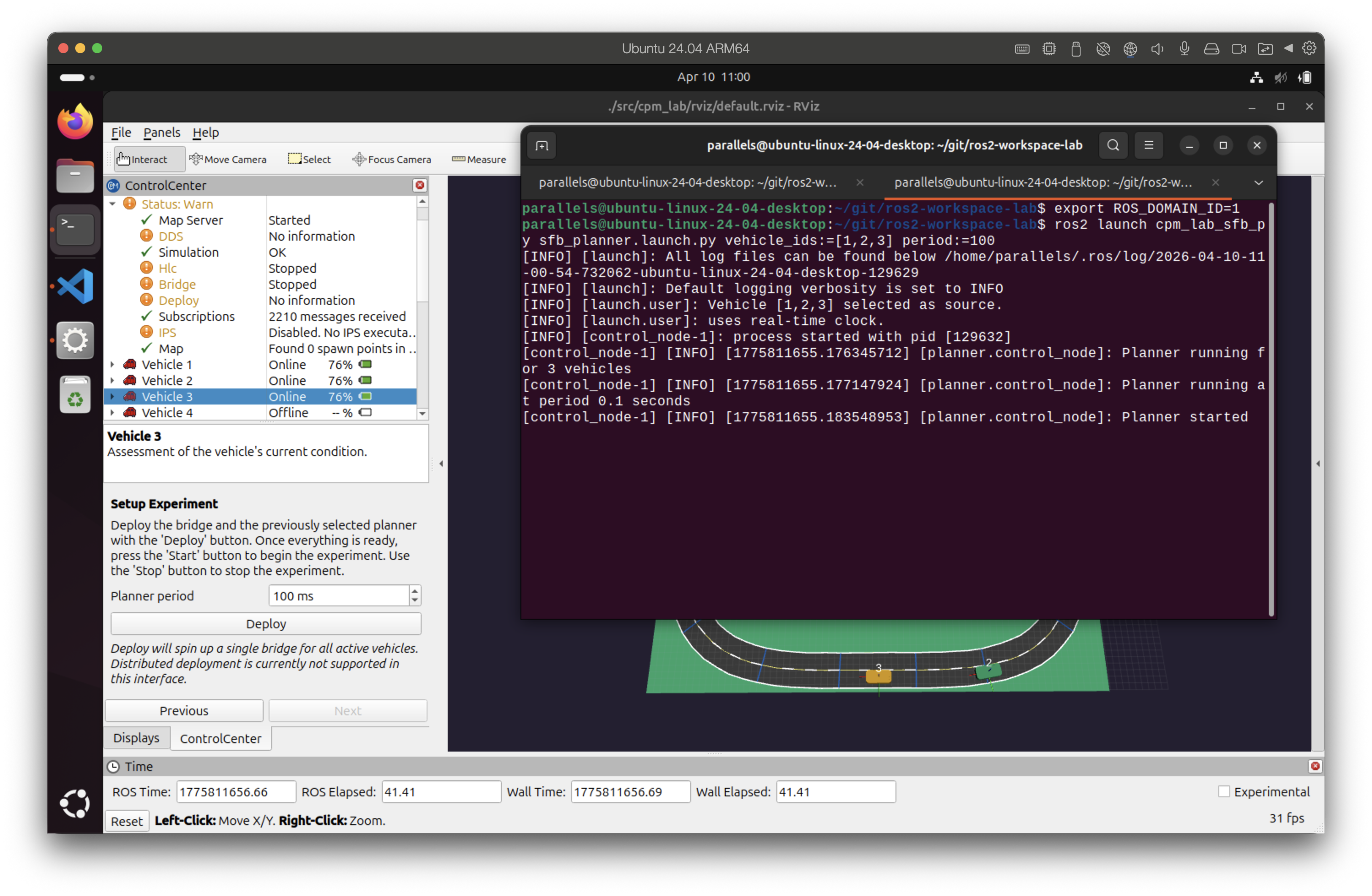

Open a second terminal and start your external motion planner. Make sure to source ROS2 and set the ROS_DOMAIN_ID to 1.

source /opt/ros/<ros2-distro>/setup.bash
export ROS_DOMAIN_ID=1
ros2 launch cpm_lab_sfb_py sfb_planner.launch.py vehicle_ids:=[1,2,3] period:=100

Note

The example above launches the sfb motion planner with a 100ms update period for vehicles 1, 2, and 3. Adjust the command as needed for your specific motion planner and configuration.

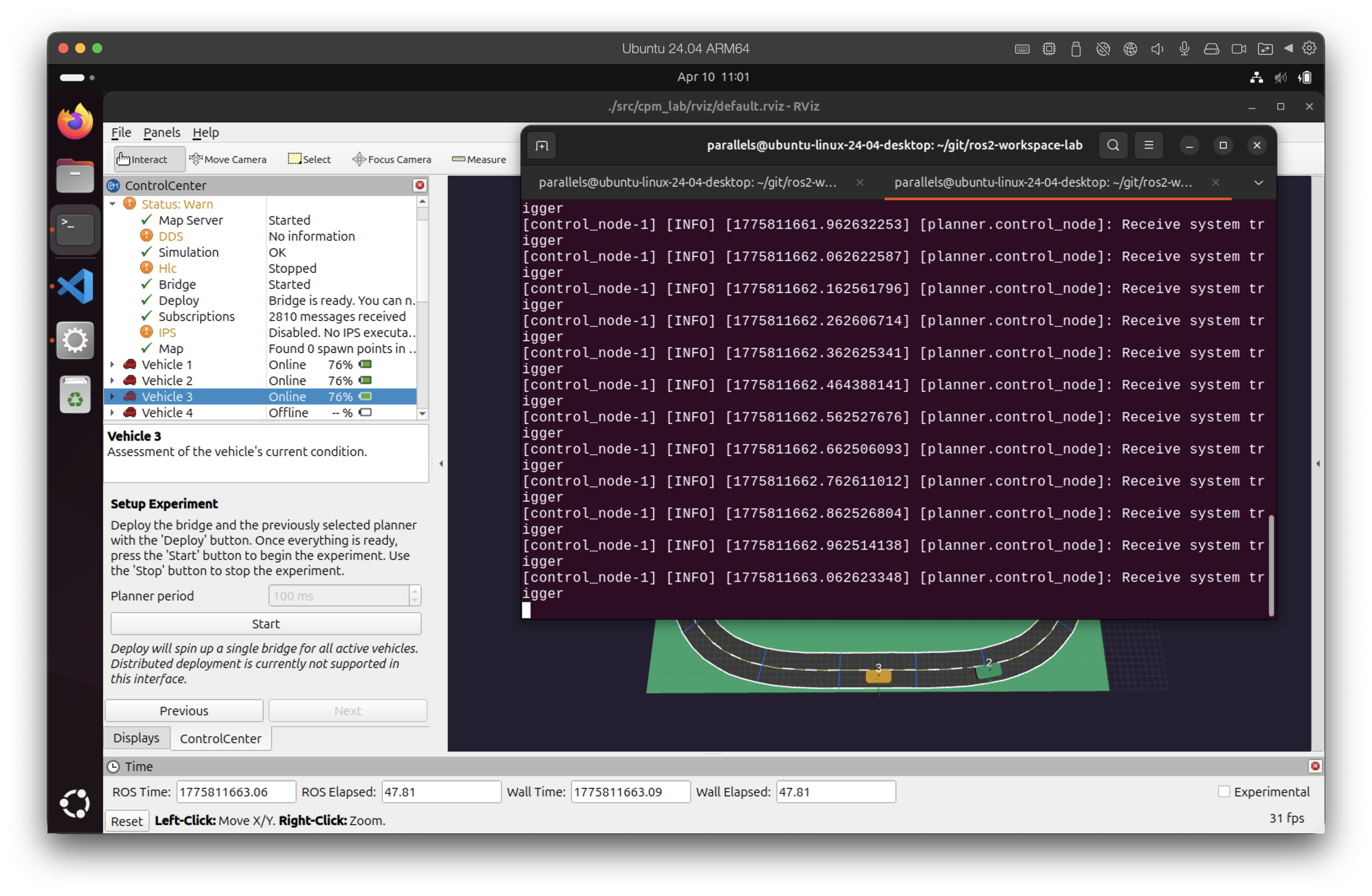

In the experiment setup screen you can set the motion planner update rate (ms) and start the bridge by clicking “Deploy”. The bridge will query each component (vehicles and planner) for readiness; once all components report ready the Control Center enables the “Start” button. If you use FastDDS you may then also see the map in RViz. You should see the motion planner communicate with the Control Center in the terminal output.

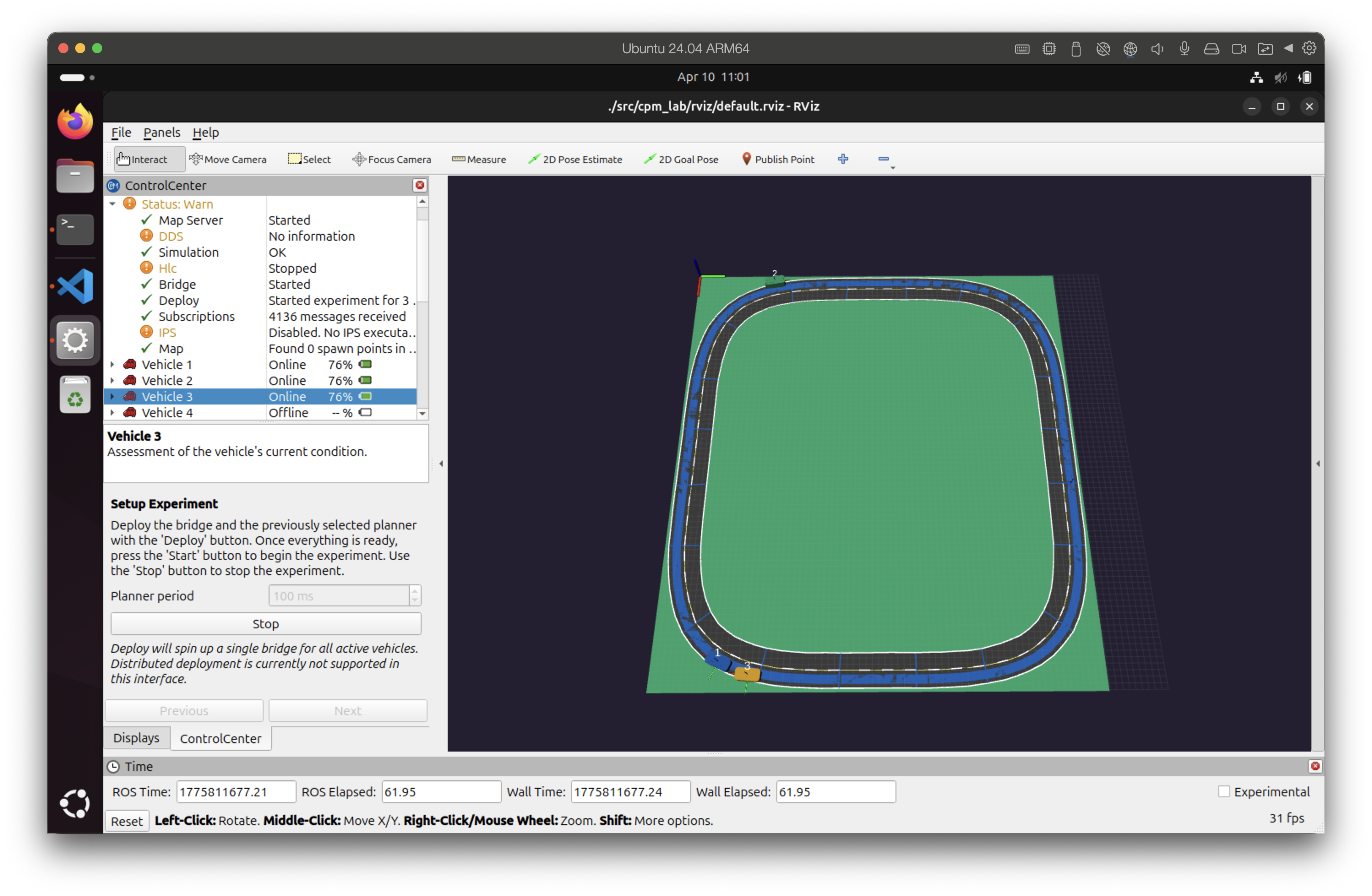

Click “Start” to begin the simulation. Vehicles should move in RViz according to the motion planner commands.

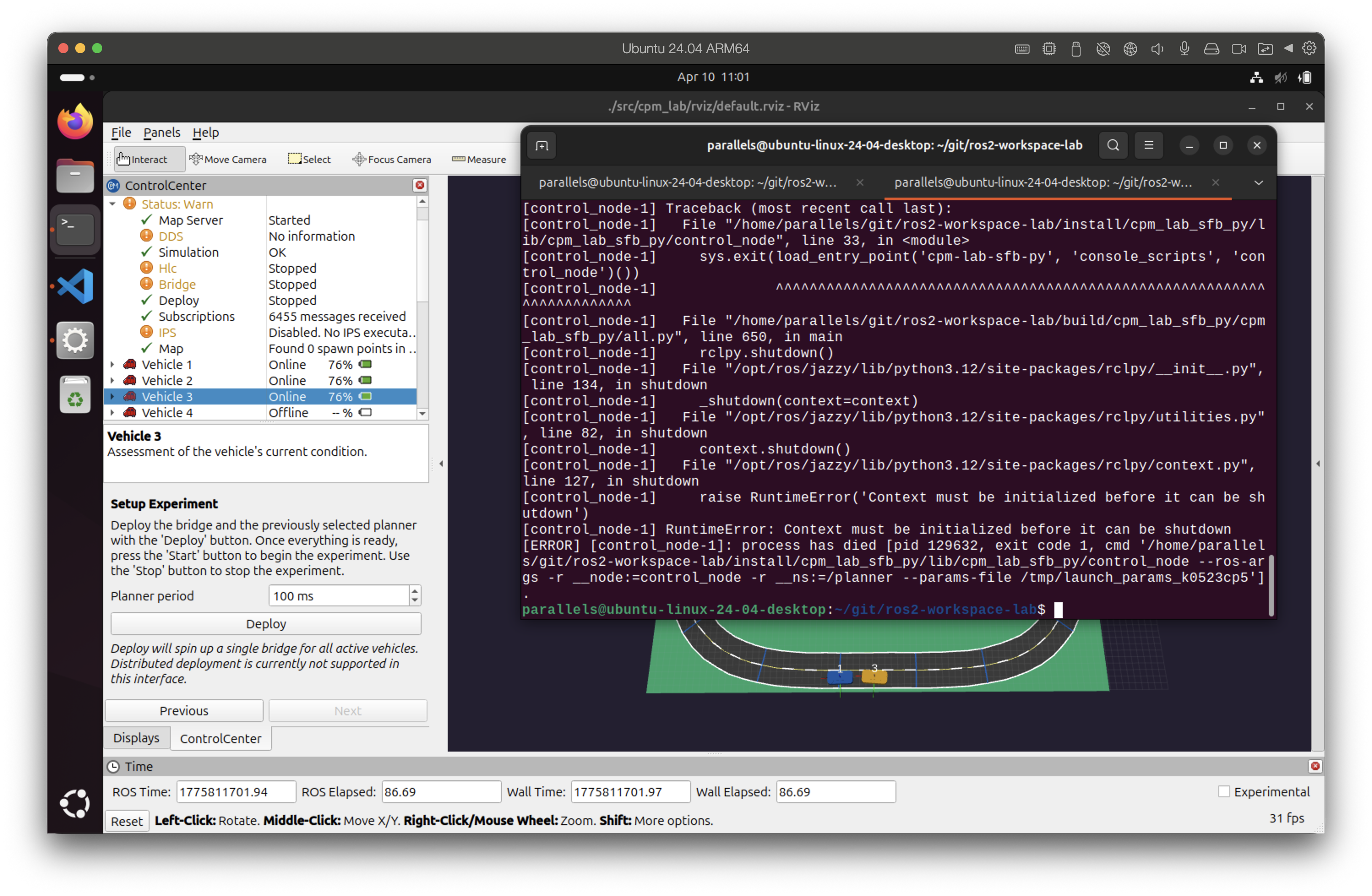

Click “Stop” to stop the simulation. You should see the motion planner stopping as well. Closing RViz will also close the Control Center and any components it started but not the external motion planner you started in the second terminal. You can stop the motion planner with Ctrl+C in its terminal.

Optional: Advanced Discovery Modes

Using FastDDS Discovery Server

Export the discovery server address before launching RViz and use the same address when starting the FastDDS Discovery Server in the Control Center. Components started by the Control Center will use that discovery server address automatically.

source /opt/ros/<ros2-distro>/setup.bash
export ROS_DOMAIN_ID=21
export ROS_DISCOVERY_SERVER=<ip-address>:11811
rviz2 -d <path-to-rviz-config>

Using Eclipse Zenoh

Start the Zenoh router in a separate terminal before launching RViz. You only need to start the router once and keep it running for all Zenoh-based ROS2 communication.

export RMW_IMPLEMENTATION=rmw_zenoh_cpp
ros2 run rmw_zenoh_cpp rmw_zenohd

Then, in a second terminal, set the RMW implementation to Zenoh and launch RViz:

source /opt/ros/<ros2-distro>/setup.bash
export ROS_DOMAIN_ID=21
export RMW_IMPLEMENTATION=rmw_zenoh_cpp
rviz2 -d <path-to-rviz-config>

Using CycloneDDS

Set the RMW implementation before launching RViz:

source /opt/ros/<ros2-distro>/setup.bash
export ROS_DOMAIN_ID=21
export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp
rviz2 -d <path-to-rviz-config>
